Product Name
Voltage
Specification
Function option

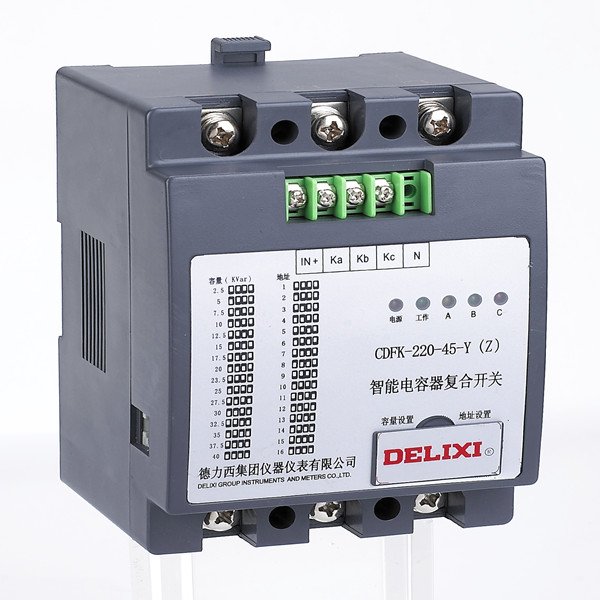

CDFK
M
45
Z
M:220V Q:380V
45A 70A
Z: communication type Default: general type
RS485 interface is available. The communication controls the output action and reduces users’ difficulty of wiring, making it easy to popularize.
Rated voltage V
380/220
Rated frequency Hz
50
Controlling voltage V
DC 8-12V
Controlling capacity kvar
30/45
Rated current A
45/70
Controlling number of poles P
3
Interval time between two connections S
30
power consumption W
2
Life ten thousand times
20
Working temperature
