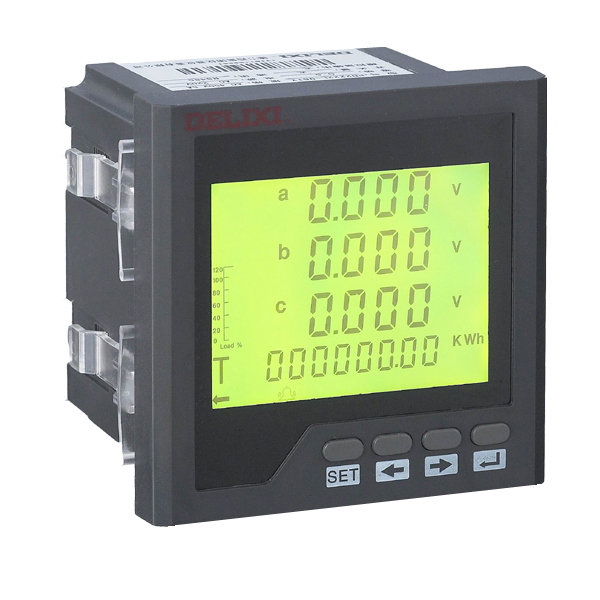

PD2222L-□□□-□□□□ Installation-type Digital Display Multi-functional Panel Meter

Category: Panel Meter

Print this page

Fav this page

E-mail us: yqyb@delixi.com

This product contains the following details

Product Model

Product Name	Input Method	Outline Dimension	Structure	Display Method	Combination Method of Electrical Parameter	Range
P□	□	□	□	□	□	□
PD: PD2222Multi-function energy meter	L: AC	96: 96×96 72: 72×72	P: Metering display	1: one-row of digital tube display 4: three-row of digital tube display Y: single-phase LCD display 3Y: three-phase LCD display	E: Harmonic wave F: Multi-tariff	:A (V) See referenced range table for details
			T: RS485
			K: DO
			B: AO
			S: DO+RS485
			D: AO+RS485
			N: DO+AO+RS485
			M: DI+AO+RS485
			R: DI+DO+RS485
Note: 1) In structure, DI refers to digital input, indicating; DO refers to digital output, indicating; AO refers to Analog output;

Input Method	Type	Structure
AC	Multi-function energy meter	P: Metering display
		T: RS485 communication
		K: Digital output, indicating
		B: Analog output
		S: Digital output, indicating + RS485 communication
		D: Analog output + RS485 communication
		N: Digital output, indicating + Analog output + RS485 communication
		M: Digital input, indicating + Analog output + RS485 communication
		R: Digital input, indicating + Digital output, indicating + RS485 communication

Ordering Information:

The ordering code for a three-phase multi-function energy meter with harmonic wave (input: AC, outline dimension: 96×96; structure: Digital output, indicating + Analog output + RS485 communication, three-phase LCD display) is PDL96N3YE.

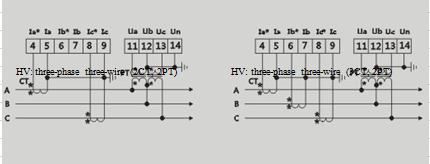

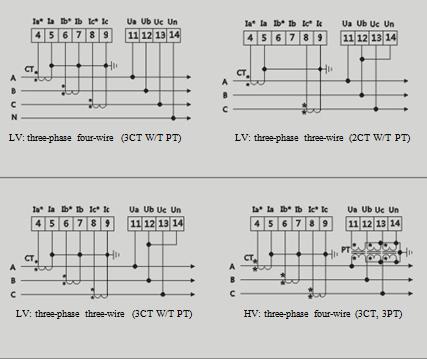

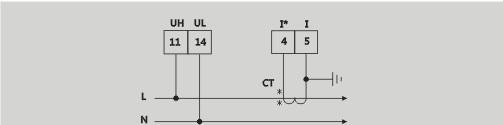

Current Range	Direct connection: 0.1A～5A
	Connect to 5A/5A～10kA/5A via CT with secondary current 5A
Voltage Range	Direct connection: 3V～600V
	Connect to 380V/100V～380kV/100V via VT with secondary voltage 100V

Input	Technical Parameters		Indicator
	Power grid		Single-phase, three-phase
	Voltage	Overvoltage	Duration: 1.2 * Un transient: 2 * Un lasts for 1 sec.
	Current	Overcurrent	Duration: 1.2 * In transient: 10 * In lasts for 5 sec.
	Frequency		45Hz～ 65Hz
Functional module	Electric energy pulse		Two-circuit of electric energy pulse output
	Electric energy pulse constant		Active 8000imp/kwh, reactive 8000imp/kvarh
	Digital input		Passive dry-node optical coupling isolation
	Analog		DC4～20mA (Load ＜600?) DC0～5/10V (Load ＞1k?)
	Alarm		2-circuit passive relay output: 3A/30VDC, 3A/250VAC
			Alarm method: Amount of hysteresis can be set freely
	Communication	Method	RS-485
		Protocol	MODBUS-RTU
		Baud rate	2400, 4800, 9600 bps
Display	Display method		LED display
			LCD display
Level	Voltage, current, frequency, active power, reactive power, power factor		Class 0.5
	Active electric energy		Class 0.5 or Class 1.0
	Reactive electric energy		Class 1.0 or Class 2.0
Auxiliary power supply (APS)	Range		AC/DC85V～265V
	Power consumption		＜4VA
Safety	Withstanding Voltage	Input and auxiliary power supply	＞2kV50Hz/1min
		Input and output	＞2kV50Hz/1min
		Output and auxiliary power supply	＞2kV50Hz/1min
	Insulation resistance	Auxiliary power supply, input, output Vs. meter case ＞100M?

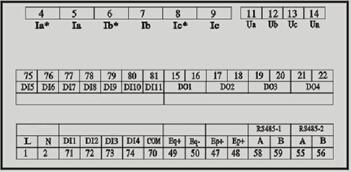

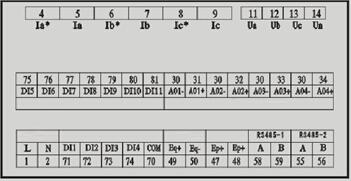

Model	Outline Dimension	Size of Installation hole	Total Length	Depth
72	72×72	68×68	93	78
96	96×96	92×92	93	78
