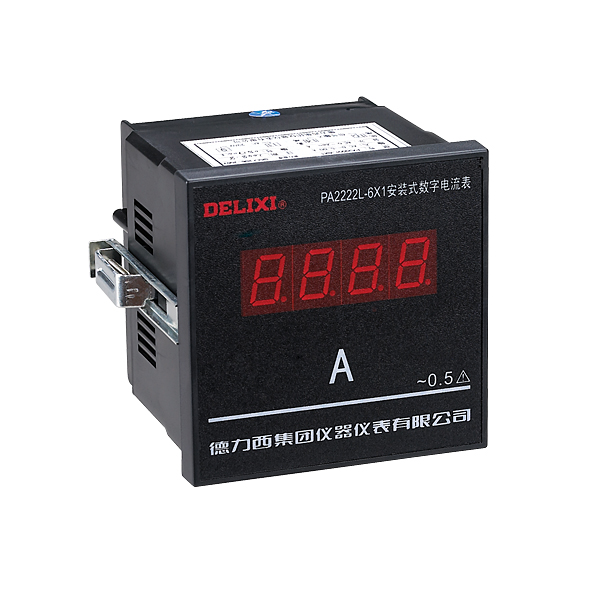

Type P□2222□-6X1 Mounted Digital-display Panel Meter
Category: Panel Meter
Print this page
Fav this page
E-mail us: yqyb@delixi.com
This product contains the following details
| Product name | Input method | Outline dimension | Code | Range |
| PA | L | 6 | X1 | * |
| PA:PA2222 Ammeter |
L: AC C: DC |
6:80×80(mm) | X1:Digital-display meter |
*: *A (V, Hz) Refer to Range Parameter Table |
| PZ:PZ2222 Voltmeter | ||||
| PP:PP2222 Frequency Meter |
| Input method | Type |
| DC | Ammeter, voltmeter |
| AC | Ammeter, voltmeter, Frequency Meter |
Range Parameter Table
| Product type | Type | Range |
| DC ammeter |
PA2222C-6X1 |
Directly connect to 50μA～500μA |
| Directly connect to 1mA～500mA | ||
| Directly connect to 1A～5A | ||
| Connect to 5A～10k via external shunt | ||
| DC voltmeter |
PZ2222C-6X1 |
Directly connect to 3V～600V |
| Connect to 750V～1.5kV via external resistant | ||
| AC ammeter |
PA2222L-6X1 |
Directly connect to 0.1A～5A |
| Connect to 5A/5A～10kA/5A via 5A Secondary CT | ||
| AC voltmeter |
PZ2222L-6X1 |
Directly connect to 3V～600V |
| Connect to 380V/100V～380kV/100V via 100V Secondary VT | ||
| Frequency Meter |
PP2222L-6X1 |
45Hz～55Hz 55Hz～65Hz 45Hz～65Hz |
| 100V 220V 380V |
Order Information:
The ordering code for digital panel meter (AC input, ammeter, dimension: 80x80) is PAL6X1*.
n Easy to read, LED display of long lifespan.
n High accuracy and good full range linearity.
n Stable and reliable performance.
| Technical Parameters | Indicators | ||
| Input | Network | Single-phase | |
| Voltage | Overloaded | Continuous voltage: 1.2 x Un; transient voltage: 1.5 x Un | |
| Current | Overloaded | Constant: 1.2 In Transient: 1.5 In | |
| Frequency | 45Hz～55Hz | ||
| Output | Display Methods | 3 1/2-digit LED display | |
| Accuracy | Voltage, Current, Frequency | ± (0.5%RNG+1 figure) RNG: full range value | |
| Power | Range | AC220V±10% | |
| Power Consumption | ＜3.5W | ||
| Safety |
Voltage withstanding |
Input and auxiliary power supply | >2kV 50Hz/ 1min |
| Insulation Resistance | Resistance of auxiliary power supply & input corresponding to the case >100MΩ | ||

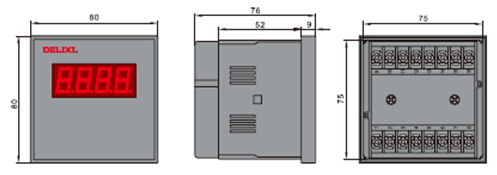

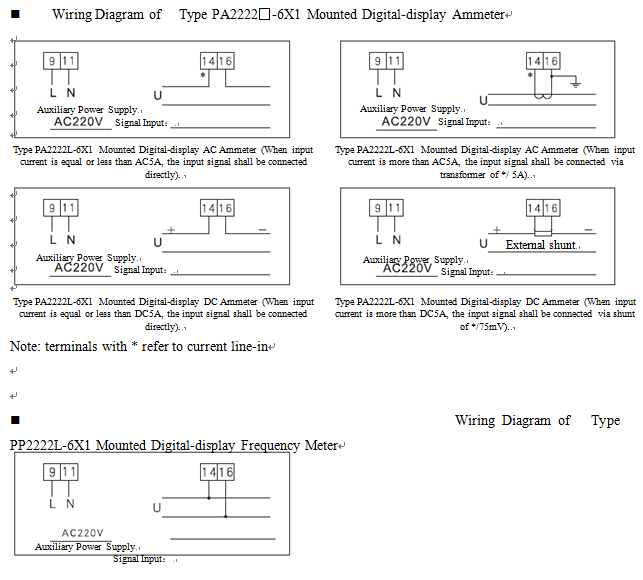

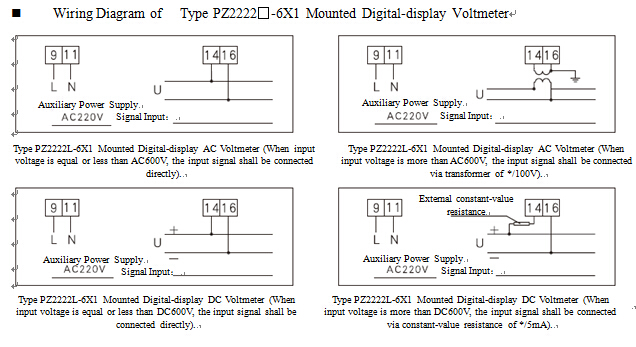

Wiring Diagram
n Terminals
