This product contains the following details
| Product Name | Voltage | Accuracy class | 1) Specifications | 2) Function Option |
| DDSF606 | M | 1 | 6M4 | H |
|
|
M:220V |
1: Class 1 |
6M4：1.5(6)A
... |
H: Connect via VT/CT |
| Name | Type | Reference Voltage (V) | Accuracy class |
Basic Current (Max. Current) (A) |

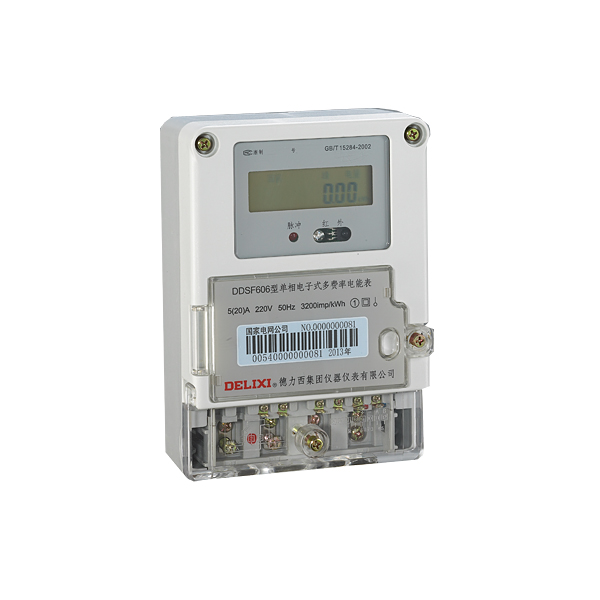

| Single-phase multi-tariff electronic energy meter | DDSF606 | 220 | 1、2 |
1(10), 1.5(6), 1.5(9), 1.5(15), 2.5(10), 3(6), 5(6), 5(10), 5(20), 5(30), 5(40), 5(50), 5(60), 10(40), 10(50), 10(60), 10(80), 10(100), 15(60), 15(90), 20(80), 20(100), 30(100) |
Note: 1) "M" in the specification code represents multiple of current.
2) "H" in the code represents Connect via VT/CT function.
Ordering Information
The Ordering code for a Model DDSF606 single-phase multi-tariff electronic energy meter (220V, Class 1 & 1.5 (6)A is DDSF606M16M4H.
■ Comply with the technical specification of new countryside distribution network meter of State Grid Corp..
■ The design and structure of the energy meter ensure no danger when used under rated conditions.
■ Energy consumption at total, sharp, peak, shoulder, off-peak time section in forward & backward directions are all metered. It can record programming event and other events like time calibration, power failure.
■ Four Tariffs: sharp, peak, shoulder and off-peak; 8 daily time-sections with min. time-section of 15 minutes can be set;
■ Programming and meter reading can be done by communication between PDA computer and PC respectively through infrared interface and RS485 interface.
■ The meter is easy to read as energy in total and in peak, shoulder & off-peak time-sections of this month, last month and the month before last are LCD-displayed either item by item or in cycle.The reading is displayed in 6 integers and 2 decimals.
■ The total active energy in 12 months are recorded and can be read through infrared and RS485 interfaces.
| Certificate | ZZ No. 00000321 |
| National Standard | GB/T 17215.321 GB/T 15284 |
| Industry Standard | DL/T 645-2007 |
| International Standard | IEC 62053-21:2003 |
| Current Specifications A | 1(10), 1.5(6), 1.5(9), 1.5(15), 2.5(10), 3(6), 5(6), 5(10), 5(20), 5(30), 5(40), 5(50), 5(60), 10(40), 10(50), 10(60), 10(80), 10(100), 15(60), 15(90), 20(80), 20(100), 30(100) |
| Reference Voltage V |
220 |
| Accuracy class (Class) |
1, 2 |
| Power Consumption | Power Consumption of Voltage Circuit under Non-communication≤1.5W/10VA, Power Consumption of Voltage Circuit under communication≤3W/12VA, Power Consumption of Current Circuit≤1VA |
| Daily Timing Error | ≤1s/d(23℃) |
| Battery Capacity | 1.2Ah, it shall maintain normal operation of the internal clock after power is cut off for a total of no less than 5 years. |
| Project Needs | The user can make a requirement for more functions if necessary when placing an order. |

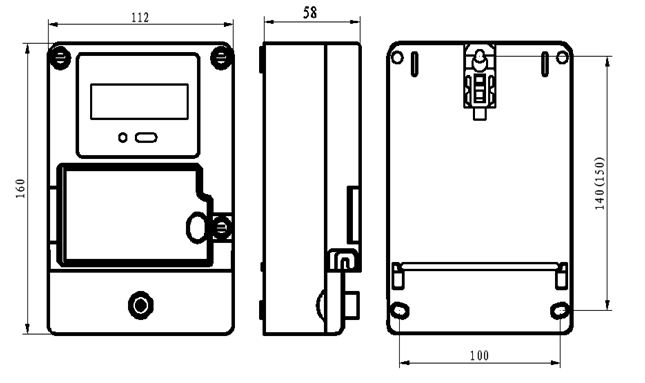

| Product Name | Current Specifications (A) |
Outline Dimensions Length×Width×Height (mm) |
Installation Dimensions Length×Width (mm) | Case Material |
| DDSF606 | 1(10), 1.5(6), 1.5(9), 1.5(15), 2.5(10), 3(6), 5(6), 5(10), 5(20), 5(30), 5(40), 5(50), 5(60), 10(40), 10(50), 10(60), 10(80), 10(100), 15(60), 15(90), 20(80), 20(100), 30(100) |
160×112×58 |
140（150）×100 | PC+GF (non-flammable) |

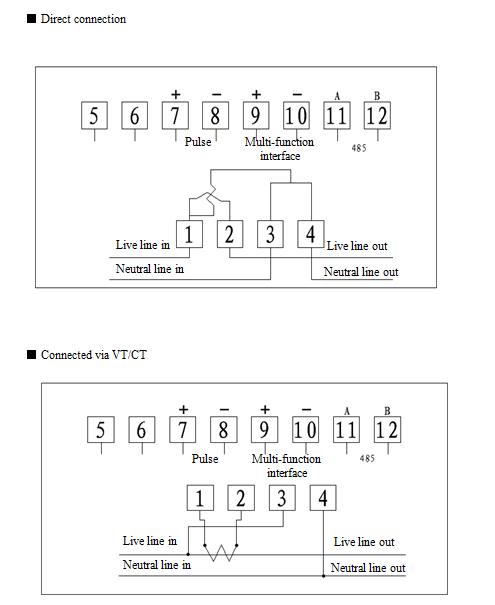

Wiring Diagram:
