Note: 1) “M” in the specification code represents multiple of current.
2) The function of connection via VT/CT is only available for 1.5(6)A & 3(6)A meters with the rated secondary current of the transformer is 5A.
Order Information:
The Ordering code for three-phase four-wire electronic multi-tariff energy meter connected via CT/VT (220V, Class 1 & 1.5 (6)A) is DTSF607MQ16M4H.

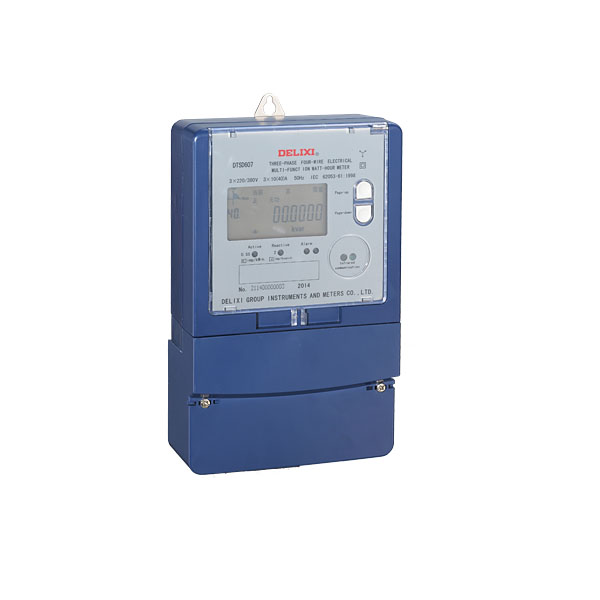

■Model DT (S) D607 Three-phase Electronic Multi-functional Energy Meter consists of the measuring unit and the data processing unit.

 Function Characteristics

■ Metering: Total Active & Reactive Energy, Total Four-quadrant Reactive Energy, Forward & Reversed Active Energy at All Tariffs, Forward & Reversed Reactive Demand at All Tariffs, Total Current Forward & Reversed Reactive Energy, and Max. Demand at all Tariffs & Max.Demand Time

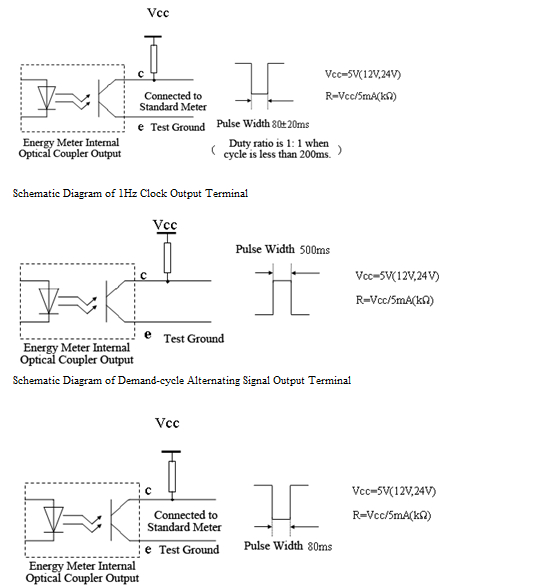

■ Output: Forward and backward Active Energy Output, Forward and backward Reactive Energy Output, Clock Output and Multi-functional Output.

■ Incident Recording: Loss of Voltage, Loss of Current, Voltage Eligibility Rate, Power Outage & Power Recovery, Programming, Demand Reset, Radio Time Synchronization, Forward Active Energy Freeze at the End of Time Period, Monthly Energy

■ Transient Parameter Measuring

■ Audible & Visual Alarm

■ Typical Day Load

Extended Functions

■  Monthly (Settlement of) Forward Active Energy Recording

■  Energy Freeze

■  Forward Active Energy Freeze at the End of Time Period

■  Power-off Meter Wake-up (Visual Wake-up is optional)

■  Independent Double 485 Communication Port

■  Current Detection in Case of No Voltage in Three Phases (Optional)

■  Meter Cover Open Recording (Optional)

■  Load Curve Recording (Optional)

■  Incident Packet Recording
